List with description

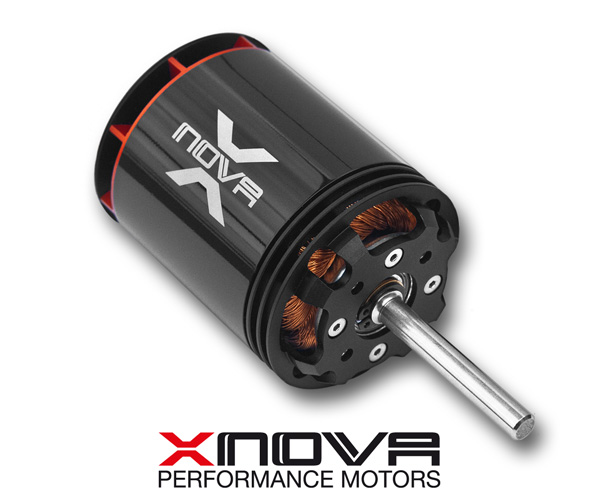

Xnova-4035-400KV-5Y

Xnova brushless high performance outrunner motor for 700 or larger size helicopters for 3d flying on 12s. It is also a good efficient AP motor.

High qual. Neodym Mag.heat res. up to 150 degree C.
Specialized wires,heat resistance up to 250 degree C.
Precise balanced.
High performance stator metal sheet.
Optimized ventilation.
High quality NMB bearings.(2 on top 1 at bottom)
Marked leading high effiency up to 92%.
Superb quality and machining of CNC parts.

Slots & Poles	24n8p
Winding T	3Y
rpm/V	400
Volt (V)	10 \| 20 \| 30
Io(A)	0.8 \| 1 \| 1.2
Rm (mohm)	23 \| 23 \| 23
Weight (without connector) (g)	483
Body Length (no shaft) mm	65.75
Diameter (mm)	49.5
Shaft Length (mm) (Details pictures)	\| 41 \| 27
Shaft Dia. (mm)	6
Mounting Holes CTC Distance (mm)	25 \| 30
Mounting Screw	2 x M4 \| 2 x M4
Max Eff. Curr.	18.65 \| 29.49 \| 39.56
Max Eff.	91.42 \| 93.22 \| 93.93
Kt (Nm/A	239
Km (Nm/sqrt(w))	0.1574
Max Continuous Power(Watts)	3500
Peak Continuous Power(Watts) (5 sec)	5300
Max cont. current (A)	78

Motorshaft

Type A

kr 2 659,00kr 2 659,00

Max:

Min: 1

Step: 1

Add to cart

Xnova-4808-380KV

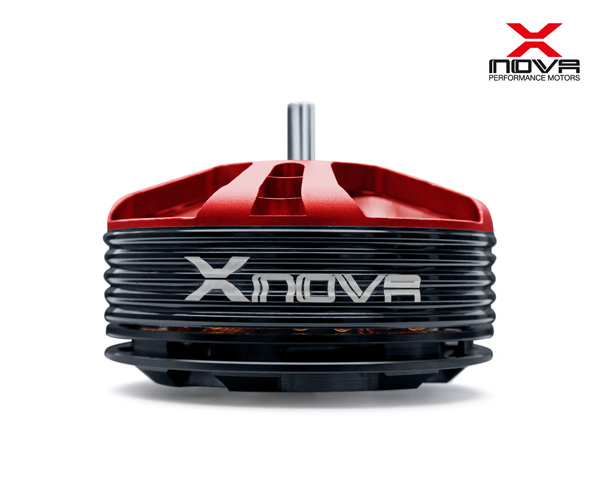

Xnova 4808-380KV (multirotor)

High performance and finest CNC quality
Ultimate efficiency
Low cogging torque and smooth running
Precise balanced and fully tested

Motor Type	MS4808-380
No-load current (@10V)	0.5A
Weight (not including 60mm wires)	100g
Li-Po cells	4-6s
Resistance (including 60mm wires)	0.150Ω

Prop	Volts(V)	Throttle	Amps(A)	Thrust(g)	Watts(W)	Efficiency(g/w)
A PC14x4.7	14.8	50%	1.8	300	26.64	11.26
		65%	3.4	515	50.32	10.23
		75%	4.4	650	65.12	9.98
		85%	5.3	760	78.44	9.68
		100%	8.6	1050	127.28	8.24
D JI15x5		50%	1.8	355	26.64	13.32
		65%	3.3	590	48.84	12.08
		75%	4.9	765	72.52	10.54
		85%	7.4	1020	109.52	9.31
		100%	8.6	1120	127.28	8.79
1 6.5.5		50%	2.5	400	37	10.81
		65%	4.6	650	68.08	9.54
		75%	6.8	863	100.64	8.57
		85%	8.4	1000	124.32	8.04
		100%	11.5	1210	170.2	7.10
APC12x3.8	22.2	50%	2.9	640	64.38	9.94
		65%	5.8	1095	128.76	8.50
		75%	8	1320	177.6	7.43
		85%	12.6	1700	279.72	6.07
		100%	13.9	1780	308.58	5.76
APC14x4.7		50%	4.4	800	97.68	8.19
		65%	7.8	1225	173.16	7.07
		75%	10.4	1480	230.88	6.41
		85%	14.1	1770	313.02	5.65
		100%	20	2300	444	5.18
DJI15x5CF		50%	4.2	730	93.24	7.82
		65%	7.2	1060	159.84	6.63
		75%	10.03	1400	222.666	6.28
		85%	13.7	1700	304.14	5.58
		100%	20.1	2010	446.22	4.50

kr 319,00kr 619,00

Max:

Min: 1

Step: 1

Add to cart

XPTXW-30

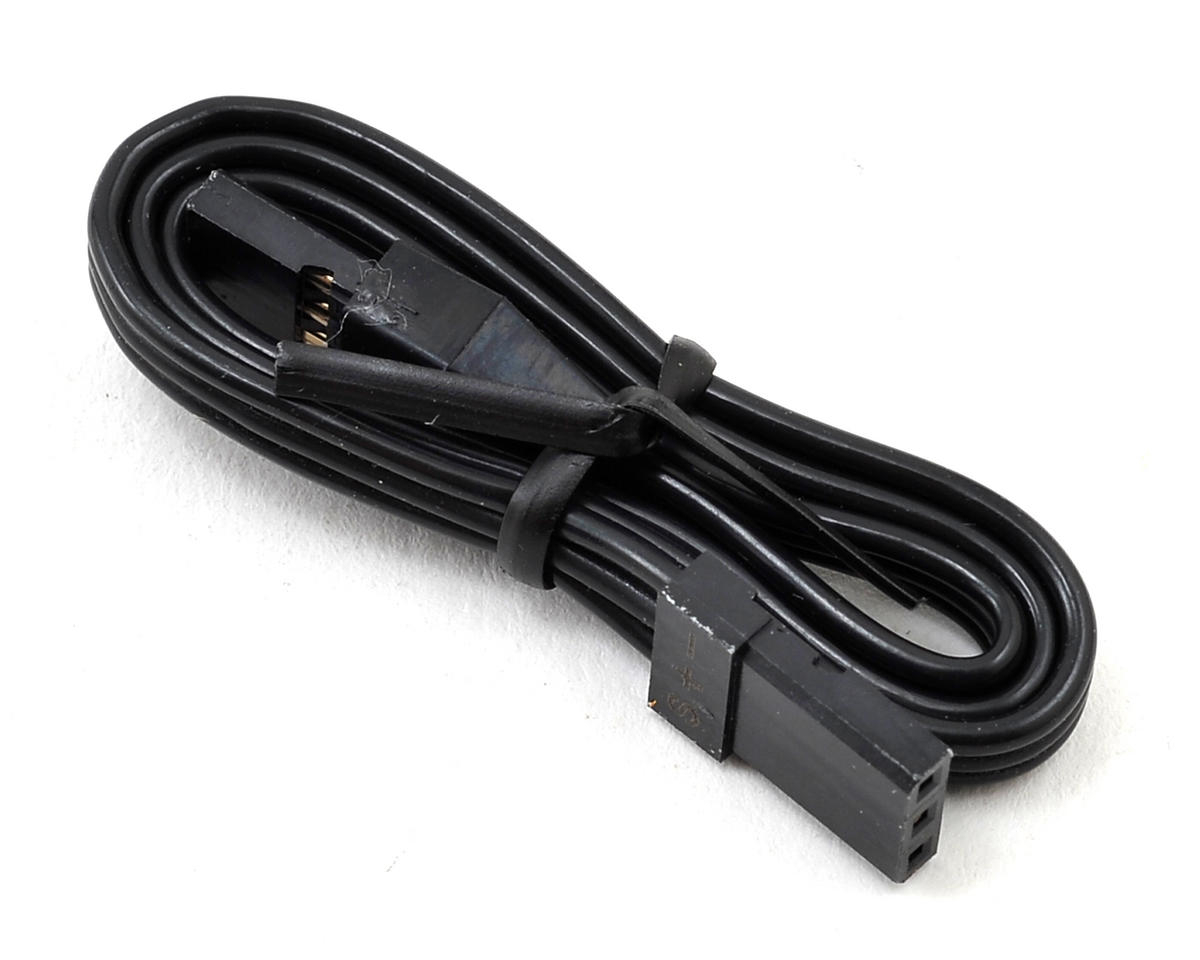

Xpert R1 Series Quick Release Cable (300mm)

This is a replacement XPert R1 series servo wire, and is 300mm (11.8″) in length.

kr 69,00

Max:

Min: 1

Step: 1

Add to cart

M-25T-0

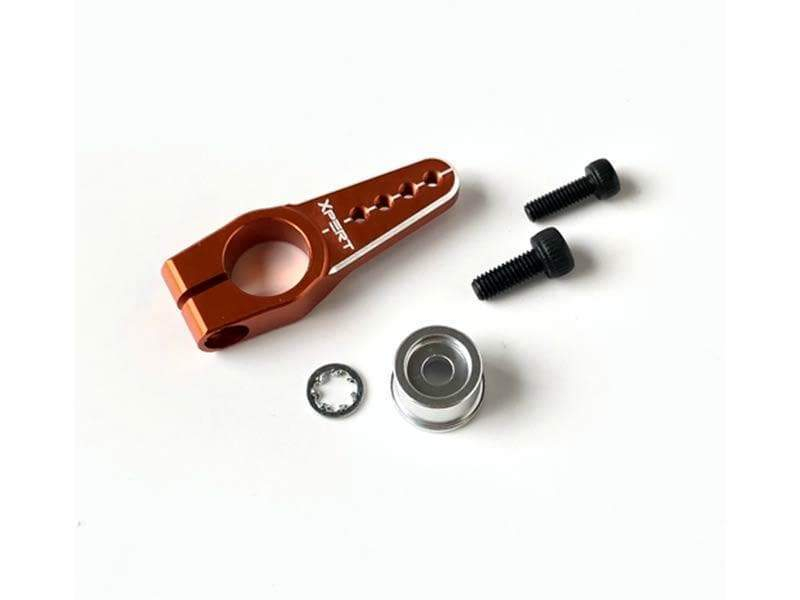

Xpert Servo Horn (25T)

This is Xpert aluminum 25T clamping servo horn.

Clamp design
3.00mm thickness arm
The servo horn can be installed either side for different height requirement application.
33.50mm overall length
11/14/17/20mm hole spacing (measured from output shaft screw hole, to linkage rod holes, center to center)
25T spline Xpert output shaft

kr 129,00

Max:

Min: 1

Step: 1

Add to cart

Xpert-Standard

Xpert Servosett

Funksjoner:

Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
Light weight design
All Aluminum case for the best thermal dissipation and durability.
Strong Metal Gear
Glitch-free
Sophisticated error correction
High-Speed, High-precision 12-bit AD converter and CPU calculation
Fail safe
Over current protection
Over temperature protection
Start sonorant
Operating frequency up to 400Hz for cyclic and 800Hz for tail

kr 0,00

Max:

Min: 1

Step: 1

Add to cart

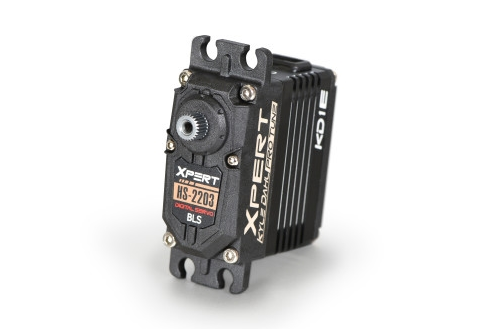

HS-2203-HV

Xpert-RC HS-2203-HV (KD1E) Standard Throttle Servo

This is Xpert KD1E HS-2203-HV Standard Size Aluminum Servo.

Features

Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
Specifically design for nitro engine throttle channel
Quick release cable that allows easy and quick installation for all helicopters.
Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
All Aluminum case for the best thermal dissipation and durability.
Strong Metal Gear
Glitch-free
Sophisticated error correction
High-Speed, High-precision 12-bit AD converter and CPU calculation
Fail safe
Over current protection
Over temperature protection
Start sonorant

Torque:

@8.4V: 83.97 oz-in/ 6.05kg-cm
@7.4V: 73.98 oz-in/ 5.33kg/cm

Speed:

@8.4V: .035sec/60
@7.4V: .040 sec/60

Dimensions: 40×37.80×20 mm
Weight: 61.9g

kr 1 390,00

Max:

Min: 1

Step: 1

Add to cart

HS-2204-HV

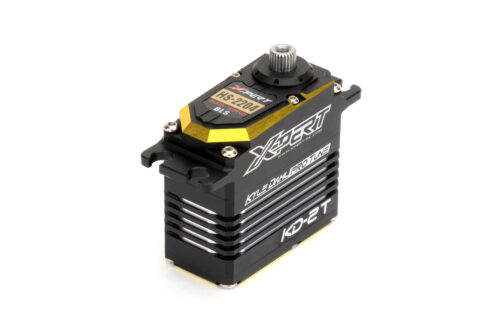

Xpert-RC HS-2204-HV (KD2T) Standard Servo (6.66 kg / 0.040 sec@7.4V)

Xpert Servos are a range of high spec servos, ALL of which are brushless for reduced current draw, increased efficiency and reduced running temperatures.

Xpert RC have been developing this range for some time now and have been carrying out extended durability testing and performance testing is some of the toughest fields in the market including 1/8thBuggy and Truggy as well as some very large high demand flight units.

Xpert have taken a quality first approach with the entire range and focus on high performance.

The quality of these servos has stunned us, featuring very precise PCB production and use of only the highest quality components. The quality is apparent as soon as the servo is first seen but becomes even more apparent when used exhibiting extreme accuracy and position holding.

Features

Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
All new software algorithm with the best “connection” with your helicopters.
All new motor and gear set design with enlarged 2mm gear alignment pins for better durability under impact.
Super Responsive NARROW BAND (760us)
Auto Adaptive FREQUENCY RANGE (50-1000Hz)
Quick release cable that allows easy and quick installation for all helicopters.
Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
All Aluminum case for the best thermal dissipation and durability.
High-Speed, High-precision 12-bit AD converter and CPU calculation
Fail safe
Over current protection
Over temperature protection
Start sonorant

Type	Standard
Product Name	HS-2204T-HV KD2T Standard Size Full Aluminum Servo
Part Name	HS-2204T-HV
Power Supply	7.4V~8.4V (0.2A~5A, max 6A)
Speed (sec/ 60°)	@7.4V: .040 sec/60° @8.4V: .035 sec/60°
Torque (oz/in)	@7.4V: 92.44 oz-in @8.4V: 104.93 oz-in
Torque (kg/cm)	@7.4V: 6.66 kg-cm @8.4V: 7.56 kg-cm
Dimensions	40×40.5×20 mm
Weight	71.5g
Range	Auto Adaptive FREQUENCY RANGE (50-1000Hz)
Center Position	760us
Applications	Helicopter Tail

kr 2 390,00

Max:

Min: 1

Step: 1

Add to cart

HS-6403-HV

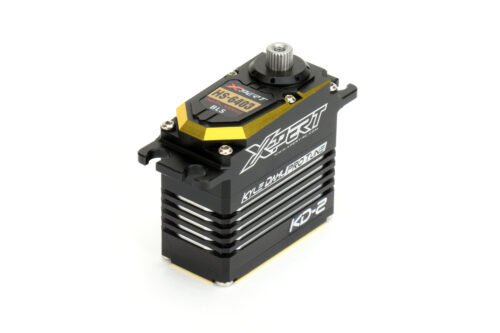

Xpert-RC HS-6403-HV (KD2) Standard Servo (26.43 kg / 0.07 sec@7.4V)

Xpert Servos are a range of high spec servos, ALL of which are brushless for reduced current draw, increased efficiency and reduced running temperatures.

Xpert have taken a quality first approach with the entire range and focus on high performance.

Features

Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
All new software algorithm with the best “connection” with your helicopters.
All new motor and gear set design with enlarged 2mm gear alignment pins for better durability under impact.
Auto Adaptive DUAL BAND (760/1520us)
Auto Adaptive FREQUENCY RANGE (50-1000Hz)
Quick release cable that allows easy and quick installation for all helicopters.
Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
All Aluminum case for the best thermal dissipation and durability.
High-Speed, High-precision 12-bit AD converter and CPU calculation
Fail safe
Over current protection
Over temperature protection
Start sonorant

Type	Standard
Product Name	HS-6403-HV KD2 Standard Size Full Aluminum Servo
Part Name	HS-6403-HV
Power Supply	7.4V~8.4V (0.2A~5A, max 6A)
Speed (sec/ 60°)	@7.4V: .07 sec/60° @8.4V: .062 sec/60°
Torque (oz/in)	@7.4V: 366.85 oz-in @8.4V: 416.40 oz-in
Torque (kg/cm)	@7.4V: 26.43 kg-cm @8.4V: 30.00 kg-cm
Dimensions	40×40.5×20 mm
Weight	73.2g
Range	Auto Adaptive FREQUENCY RANGE (50-1000Hz)
Center Position	Auto Adaptive DUAL BAND (760/1520us)
Applications	Helicopter Cyclic

kr 2 390,00

Max:

Min: 1

Step: 1

Add to cart

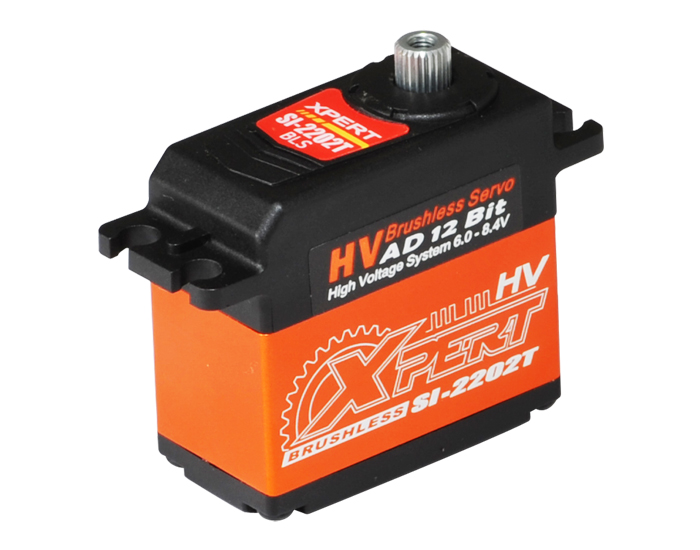

XP-SI-2202T-HV

Xpert-RC SI-2202T HV Standard Servo (7.4 kg / 0.040 sec@7.4V)

Xpert Servos are a range of high spec servos, ALL of which are brushless for reduced current draw, increased efficiency and reduced running temperatures.

Xpert have taken a quality first approach with the entire range and focus on high performance.

SI High Voltage Range.

All SI Series servos all feature brushless motors and 4096 steps of resolution giving ultra precise control and low current draw.

The SI Series servos feature a machined outer case which locates directly on the brushless motor to provide cooling, increasing efficiency and strength. Also features O Ring seals between case sections and even on the retaining screws.

Brushless Motor provides superb speed and power as well as stunning efficiency and low current draw even in relatively high torque applications..
High Voltage – for usage between 6.0v and upto Direct Lipo 8.4v
4096 Resolution steps provides super accurate class leading control
CNC Machined outer case gives strength and cooling to the servo
Fully ballraced, metal geared high precision drive train.
One of the lightest servos on the market in this class at just 65g
Comes supllied with mounting grommets to reduce vibration through to the servo, a selection of horns and fittings.
760us narrow band

All Xpert RC Servos will come with a 12month warranty, which is an exchange warranty rather than repair. NB This does not cover water damage or incorrect set up of the servo such as EPA settings / servo stalling.

SI-2202T-HV Specifications.

Dimensions: L40mm x W20mm x H37.8mm

Weight: 65.0g

Speed @ 8.4v / 60deg 0.035secs

Torque @ 8.4v 7.56 kg/cm (104.93 oz/in)

Speed @ 7.4v / 60deg 0.040secs

Torque @ 7.4v 7.40 kg/cm (83.28 oz/in)

Speed @ 6.0v / 60deg 0.049secs

Torque @ 6.0v 6.00 kg/cm (67.52 oz/in)

Gear:  7075 Aircraft Alloy

Bearing:  2BB

Case:  Outer Aluminium 25 Tooth Spline

Operating Voltage 6.0v – 8.4v

Suggested Useage: Heli Tail Rudder.

kr 1 159,00

Max:

Min: 1

Step: 1

Add to cart

XP-SI-4401-HV

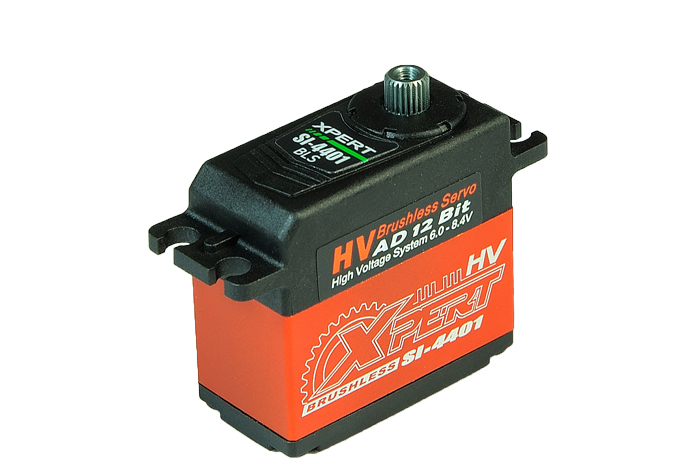

Xpert-RC SI-4401 HV Standard Servo (16.56 kg / 0.090 sec@7.4V)

Xpert Servos are a range of high spec servos, ALL of which are brushless for reduced current draw, increased efficiency and reduced running temperatures.

Xpert have taken a quality first approach with the entire range and focus on high performance.

SI High Voltage Range.

All SI Series servos all feature brushless motors and 4096 steps of resolution giving ultra precise control and low current draw.

Brushless Motor provides superb speed and power as well as stunning efficiency and low current draw even in relatively high torque applications..
High Voltage – for usage between 6.0v and upto Direct Lipo 8.4v
4096 Resolution steps provides super accurate class leading control
CNC Machined outer case gives strength and cooling to the servo
Fully ballraced, metal geared high precision drive train.
One of the lightest servos on the market in this class at just 65g
Comes supllied with mounting grommets to reduce vibration through to the servo, a selection of horns and fittings.

SI-4401 Specifications.

Dimensions: L40mm x W20mm x H37.8mm

Weight: 65.0g

Speed @ 8.4v / 60deg 0.079secs

Torque @ 8.4v 18.80 kg/cm (260.94 oz/in)

Speed @ 7.4v / 60deg 0.090secs

Torque @ 7.4v 16.56 kg/cm (231.67 oz/in)

Speed @ 6.0v / 60deg 0.111secs

Torque @ 6.0v 14.92 kg/cm (207.09 oz/in)

Gear:  7075 Aircraft Alloy

Bearing:  2BB

Case:  Outer Aluminium 25 Tooth Spline

Operating Voltage 6.0v – 8.4v

Suggested Useage: 1/8th Buggy, 700 Heli, 1/5th Throttle

kr 1 290,00

Max:

Min: 1

Step: 1

Add to cart
