Guide wheel seat

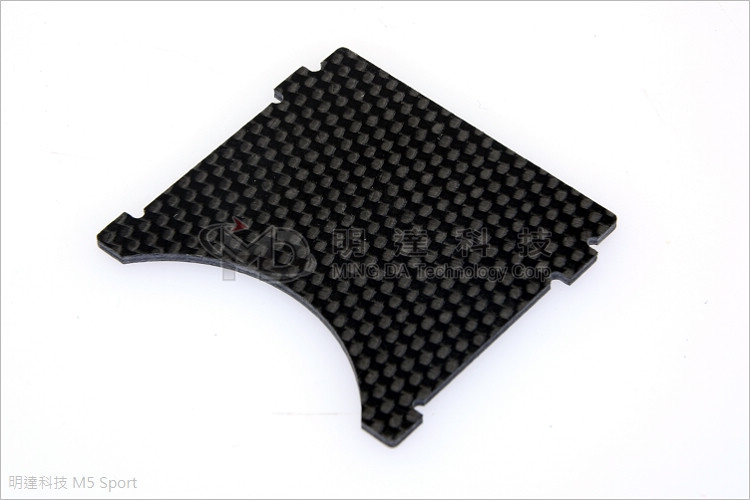

Gyro plate

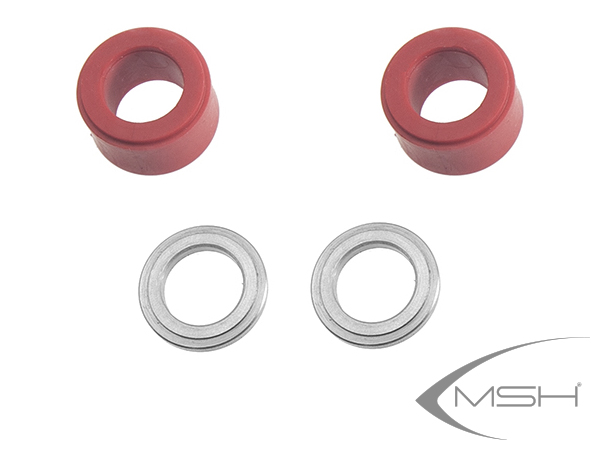

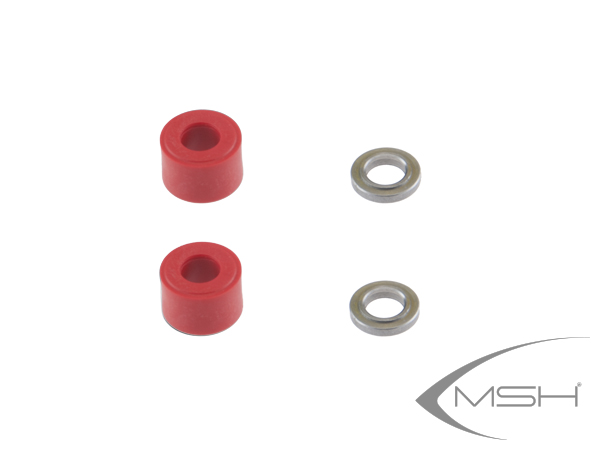

Head dampeners 3D (red)

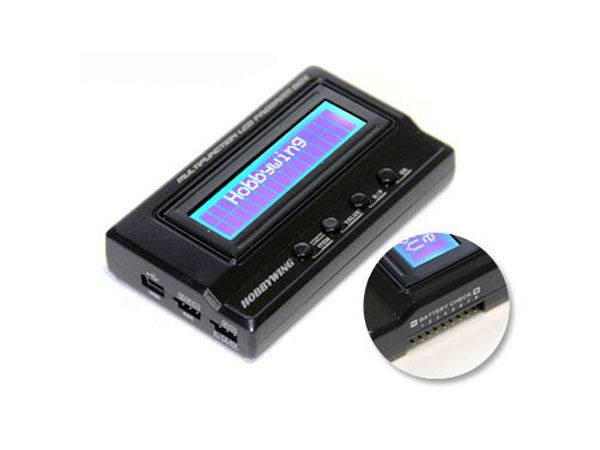

Multifunksjons programmeringsenhet for det meste av produkter fra HobbyWing. Kan også brukes for å sjekke spenningen til cellene på batteriene dine.

1 Working Modes
1.1 Works as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.
1.2 Works as an USB adapter to link the ESC with a PC to update the firmware of the ESC or set the ESC byHOBBYWING USB LINK SOFTWARE .
1.3 Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack or each cell.

2 Specifications
2.1 Size: 90mm (L) * 51mm (W) * 17mm (H)
2.2 Weight: 65g
2.3 Input Voltage: 4.5-12.6V
(If the ESC hasn’t a built-in BEC, you must use an additional battery pack to supply the program box)
2.4 Displayer: 16*2 characters LCD.
2.5 Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)

3 Compared with the “2 in 1 Professional LCD Program Box”
Models of LCD program boxes:

• 2 in 1 Professional LCD program box (Already stopped)

• Multifunction LCD program box: It is a new priduct uses MCU (microprocessor) with larger memory, it has a new function to work as Lipo battery voltmeter to measure the voltage of the whole battery pack and each cell.

• Multifunction LCD program box:
  Because of its larger memery size, a single firmware can be compatible with all speed controllers, including XERUN series V2.0/2.1/3.0/3.1, EZRUN V2.0, Platinum series and Platinum V3 series.

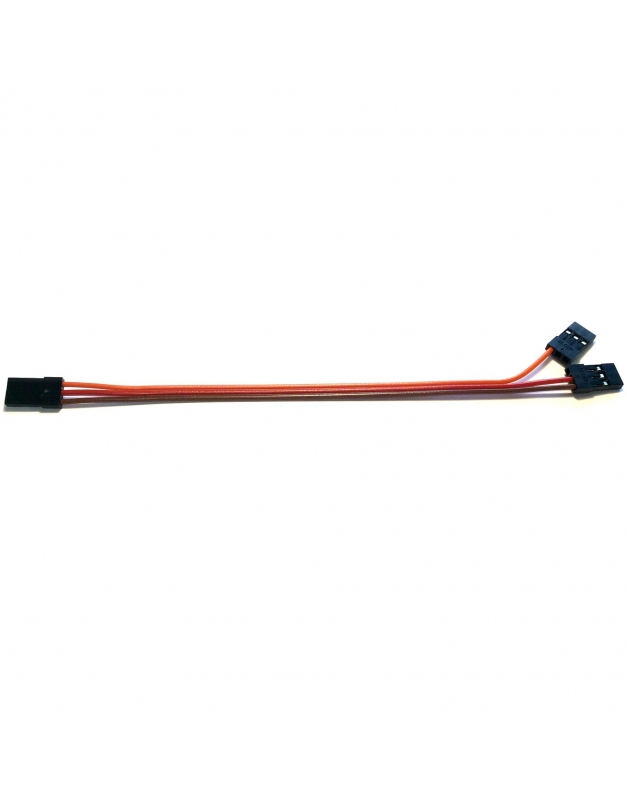

You can configure your flybarless unit directly from JETI Duplex transmitter remotely without need of computer!

You do not need to buy anything else, only Jeti EX Bus compatible receiver or Spektrum 4649T is needed. Telemetry and configuration of the unit in real time in your transmitter Cable lenght: 15cm

For further instructions visit our Wiki page:
Jeti Integration
Spektrum Integration .
