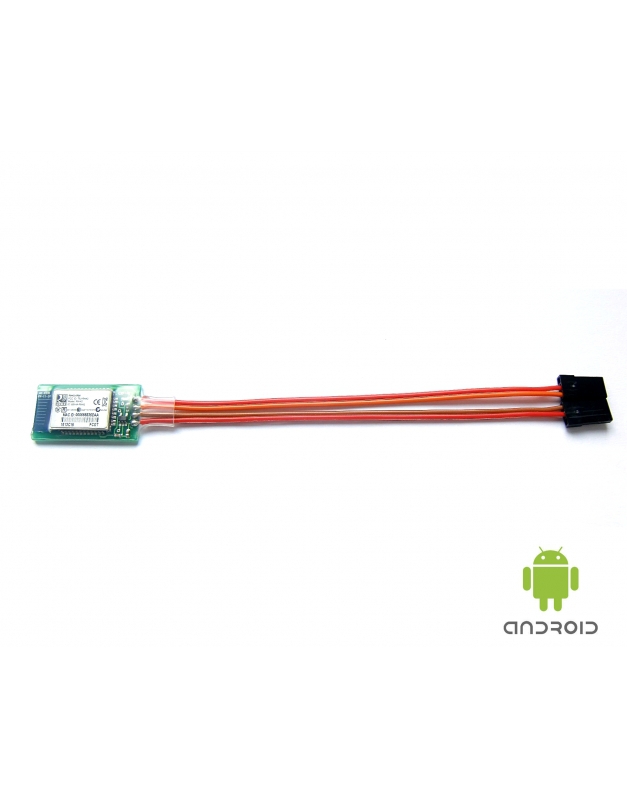

| | | BT module (HV) Parameters:
Power supply: 3.3V – 15V
Weight: 7g
Operating range: up to 30 meters App for Android on Google Play | |

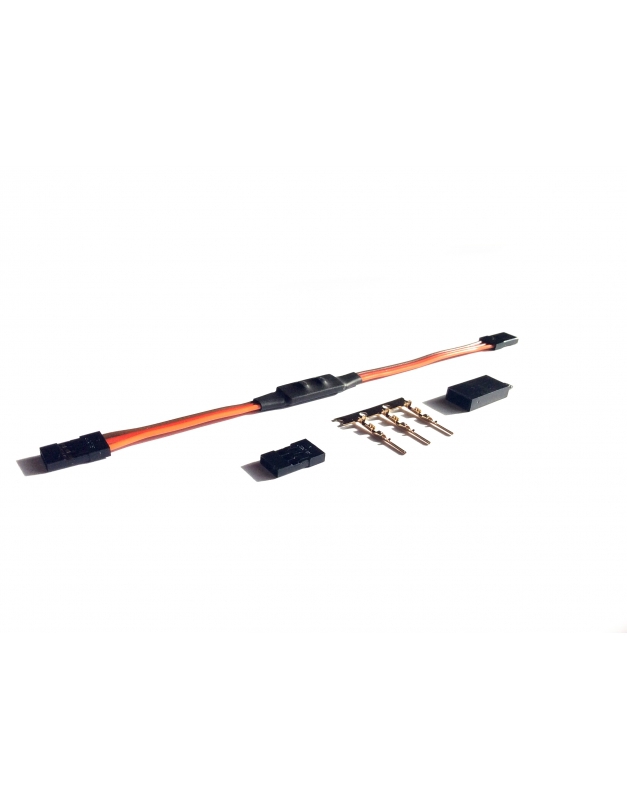

| | | You can configure your flybarless unit directly from OpenTX-based transmitter remotely without need of computer! - This solution is working from firmware 2.2.0 through PWM, PPM and S-BUS protocols.
- You do not need to buy anything else, only S.PORT compatible receiver is needed.
- Open for wide usage, without any limitations.
- Configuration of the unit in real time in your transmitter.
- Support in OpenTX 2.2 (will be released in the following days).
- For Heli and Aero firmware.
- Cable lenght: 15cm
|
Setup guide available in the Wiki page.
| |

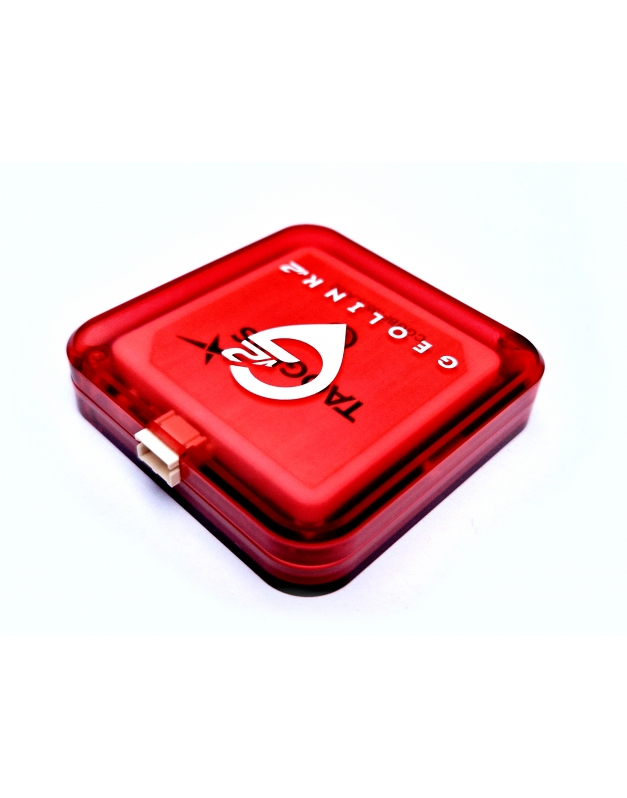

| | | Spirit GeoLink v2 is unique module that helps with flying, learning and prevents from crashing. Stop being afraid about your model. Let the module do the job for you!
Features - Position Hold – Leave the sticks and just look at the model. The GeoLink will maintain position you wish. Change the spot on will.
- Altitude Hold – Maintaining constant altitude – no need for collective pitch input.
- Altitude Limit – Let the module engage the Rescue automatically once it drops under configured altitude. Limit the altitude to not exceed a level at the same time.
- Return to Home – Command the model to return to home wherever it is.
- Geo-fence – Allow model to fly only in defined area.
- Flight log – Log each flight, view it and share it. Up to 3 hour of logged flights.
- Automatic Landing – GeoLink will land your model autonomously just like a drone.
- And more – Module can be easily updated and gain brand new functions.
Hardware specification - Navigation: Latest generation GNSS module with unbeatable 25Hz rate. Support for GPS, GLONAS, GALILEO, BEIDOU positioning systems at the same time.
- MEMS Sensor: 3-axis Gyroscope, 3-axis Accelerometer, 3-axis Compass
- Environmental Sensors: Pressure, Temperature and Humidity
- Distance Sensors: Laser precise measurement – up to 8 meters
- Processor: 32-bit Ultra-Low-Power ARM Cortex M33
- Enclosure: High quality CNC milled, red, semi-transparent Plexiglas
- Dimension: 45 x 45 x 9.5 mm
- Weight: 28 grams
GeoLink v2 is based on the very latest technology with no compromise. You can be certain you will get the best piece of hardware. Unlike GeoLink v1 there is additional Laser sensor that can be optionally used for making altitude functions even more precise. All used chips were designed just months ago to provide stunning performance. GNSS chip is able to process more than 2 times satellite number and receive signal from 4 concurrent positioning systems at the same time. This will lead to not only increased precision and safety but also to a faster signal acquisition from power up.
Package content
Compatibility - All Spirit 2, Spirit RS, Spirit Pro, Spirit GT, Spirit GTR units – connected at the secondary SAT port (SAT2)
- All µSpirit and Spirit 1 units – *connected at the SAT port
- Radio – any 6+ channel
* µSpirit a Spirit units can’t utilize ESC telemetry that is using the SAT port for data transmission.
Purpose With all these features even beginners can fly safely, learn significantly faster and to forget about stressful experience. Experienced pilots can utilize autonomous flight control to record a stunning movies, to become speed winner, to try advanced maneuvers and much more! Manual Wiki pages | |

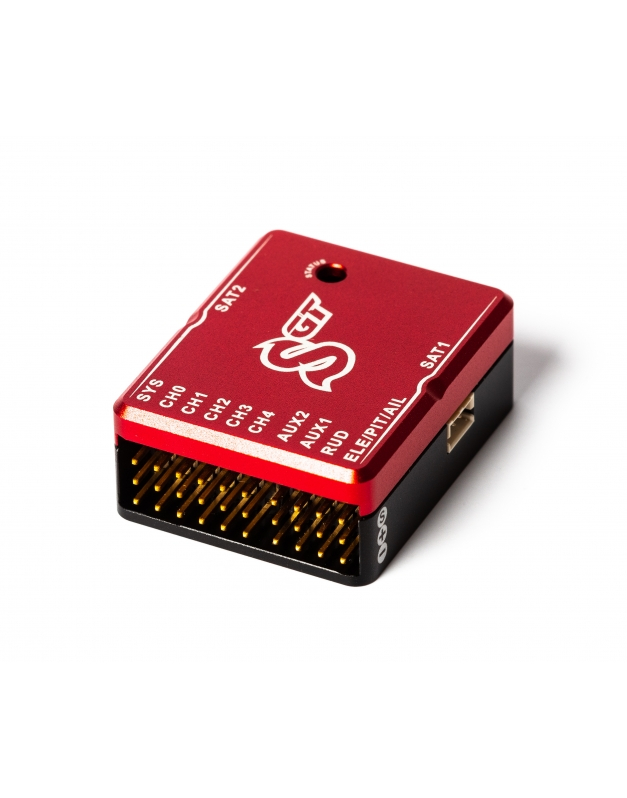

| | | Outstanding ARM M7 processorM7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing features. There is no FBL unit available at the market that offer such power. This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need. It packs native telemetry support for Futaba S.BUS2 and even FrSky S.PORT or brand new F.Port protocols. Without any special cables. Real-Time Logging capabilityLogging of everything – that is now possible for the first time! Until now, logging at 500Hz rate was barely possible. That is not an issue anymore. Thanks to durable Dedicated Memory Chip with long-life! Version 3.3.0 will unlock all these capabilities. For the first time in the history, you will be able to see how your model was flying in the air! In 3D graphics. Pressure SensorYes, it is there and fully embedded. Unparalleled precision of 1 Pascal allow extremely precise altitude measurement . With the innovative algorithms and Sensor Fusion technology the precision goes further down. It can be utilized in a various of ways such as Altitude hold or even Automatic Rescue system. Stay tuned for the upcoming firmware! Industry-leading Motion SensorMotion Sensor with 20 bit precision was unimaginable few months ago. Everybody can taste it yourself now. Superb stability through temperature gradient and Vibration immunity few times better than in any other unit. Antialiasing feature and Spirit algorithms makes the Rescue function Top of the line. Redundant PowerTrainWith Spirit 2 we have developed separated power supplies for the unit itself and peripherals. Now with Spirit GT design was enhanced to minimize voltage drops even for a peripherals! Simplified WiringOur aim is simplicity. This mean you no longer need a special cables such as FrSky Integration cable or even JETI Integration cable. It can be replaced just with normal stright one. Gold-plated ConnectorsWe care about reliability a lot. For big scale helicopters of 800 class or more extreme current amperage can develop. With Spirit GT connectors all losses are minimized. ExtensionsSpirit GT can be extended for basically unlimited servo outputs. If you will ever need to control 8 servos or more, with Spirit GT it will be possible in very near future. Servos with telemetry feature will be supported in the upcoming update too.  Hardware- Very rigid, CNC milled, anodized and sandblasted enclosure
- Color: Red and Black, matt
- Material: High quality AL6061-T6
- Dimension: 36.8×29.6×13.9mm, weight: 20g
- Power supply: 3 – 15V @ 50mA
- Operating temperature: -10°C to 60°C
- Latest generation, Ultra Fast ARM processor: 462 DMIPS
- IMU MEMS sensor with 20bit precision
(rotation to 2000°/s !) - Gold plated PCB with Pb-Free soldering
- Laser Engraved labels for perfect visibility.
- Integrated S-BUS Inverter
- Integrated FrSky Integration cable
- 2x native Spektrum connectors
- 3x connector for power supply, 5x for servos
- Revolutionary GeoLink support (GPS, vario, logger)
- Spirit Aero support (from 1.6.0 Aero firmware)
- All-pin protection
- Redundant internal powertrain for maximum safety
- Excessive tolerance for brown-outs
- Dedicated capacitor for peripheral voltage stability
- Simplified JETI receiver wiring
- Embedded Pressure ssor
- Dedicated Memory Chip for Real-Time logging
- Gold-plated pin headers for high current transmission
Package content- Spirit GT unit
- USB interface
- 15cm receiver cables
- 4x 3M VHB doublesided adhesive tape
Warranty- 2 year warranty for the original purchaser
- 50% discount for damage replacement of the unit
| Features- Super-smooth flight control
- Paddle simulation with inexpressible feeling
- Classic flybar mechanics support
- Extreme vibration immunity for all helicopter types
- Spectrum analysis for model diagnostics
- Flight log with recorded events
- Easy configuration with setup wizard
- Smartphone or tablet support via Bluetooth and WiFi
(Modules are sold separately) - Spektrum, Jeti, OpenTX and HoTT radio integration
- Available for Windows, OSX, Linux, Android, iOS,
WP, SailfishOS, FreeBSD, Raspberry Pi and more - Stabilisation for scale pilots and beginners
- Reliable, full-featured rescue system
- Integrated Bank Switching
- Governor for Electric, Nitro and Gasser Helicopters
- BEC tester with load verification
- Support for PWM, PPM, S-BUS, FrSky F.Port,
Spektrum DSM2/DSMX, JETI Duplex EX Bus,
SRXL/Graupner SUMD/JETI UDI/JR X-Bus receivers - Support for all servo types:
1520/960/760us @ 50 – 560Hz - Support for CCPM 90/120/135/140°
- Real-Time telemetry log
- Perfect flight log with 3D visualisation
- Servo extension board for 8 servos and more
Manual- Available at the Wiki pages.
|
| |

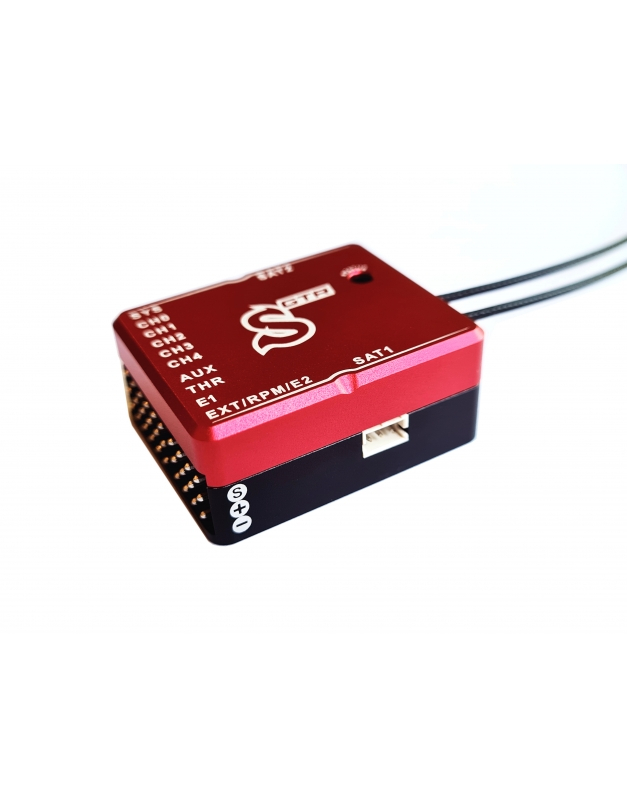

| | | Spirit GTR is brand new stabilisation system for R/C aircrafts featuring control unit and receiver in one extraordinary packageǃ It combines the best available technologies from both worlds to offer cutting edge experience. In other words, Spirit GTR consists from Spirit GT hardware and JETI Duplex receiver. Manual available at the Wiki pages. Outstanding ARM M7 processorM7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing features. There is no FBL unit available at the market that offer such power. This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need. Real-Time Logging capabilityLogging of everything – that is now possible for the first time! Until now, logging at 500Hz rate was barely possible. That is not an issue anymore. Thanks to durable Dedicated Memory Chip with long-life! Version 3.3 will unlock all these capabilities. For the first time in the history, you will be able to see how your model was flying in the air! In 3D graphics. Pressure SensorYes, it is there and fully embedded. Unparalleled precision of 1 Pascal allow extremely precise altitude measurement . With the innovative algorithms and Sensor Fusion technology the precision goes further down. It can be utilized in a various of ways such as Altitude hold or even Automatic Rescue system. Industry-leading Motion SensorMotion Sensor with 20 bit precision was unimaginable few months ago. Everybody can taste it yourself now. Superb stability through temperature gradient and Vibration immunity few times better than in any other unit. Antialiasing feature and Spirit algorithms makes the Rescue function Top of the line. Redundant PowerTrainWith Spirit 2 we have developed separated power supplies for the unit itself and peripherals. Now with Spirit GTR design was enhanced to minimize voltage drops even for a peripherals! ExtensionsSpirit GTR can be extended for basically unlimited servo outputs. If you will ever need to control 8 servos or more, with Spirit GTR it will be possible in very near future. Servos with telemetry feature will be supported in the upcoming update too. Hardware- Very rigid, CNC milled, anodized and sandblasted enclosure
- Color: Red and Black, matt
- Material: High quality AL6061-T6
- Dimension: 36.8×29.6×15.8mm, weight: 23g
- Power supply: 3.2 – 10V @ 55mA
- Operating temperature: -10°C to 60°C
- Latest generation, Ultra Fast
32bit ARM processor: 468 DMIPS - MEMS sensor with 20bit IMU (rotation to 2000°/s !)
- Gold plated PCB with Pb-Free soldering
- Laser Engraved labels for perfect visibility.
- 2x independent telemetry ports for JETI DUPLEX sensors
- 3x connector for power supply, 5x for servos
- All-pin protection
- Redundant internal power chain for maximum safety
- Excessive tolerance for brown-outs
- Embedded JETI DUPLEX 2.4 Ghz Telemetry Receiver
- Precise Pressure Sensor for Altitude Measurement
- RealTime Logging Feature for detailed flight recording
- 2x 20cm Full-range antennas
- Max. output power: 15 dBm
- Receiver sensitivity: -106 dBm
Package content- Spirit GTR unit
- USB interface
- Bind plug
- 3x 3M VHB doublesided adhesive tape
Warranty- 2 year warranty for the original purchaser
- 50% discount for damage replacement of the unit
| Features- Super-smooth flight control
- Paddle simulation with inexpressible feeling
- Classic flybar mechanics support
- Extreme vibration immunity for all helicopter types
- Spectrum analysis for model diagnostics
- Flight log with recorded events
- Easy configuration with setup wizard
- Smartphone or tablet support via Bluetooth and WiFi
(Modules are sold separately) - Full integration and telemetry with JETI DUPLEX
- Supported by all JETI DUPLEX radios
- Support for all JETI DUPLEX sensors
- Support for backup DUPLEX receiver
- Support for JETIBOX
- Support for ESC Telemetry – HobbyWing, Kontronik,
Castle, YGE, Scorpion - Revolutionary GeoLink support (GPS/GNSS, vario, logger)
- Available for Windows, OSX, Linux, Android, iOS,
WP, SailfishOS, FreeBSD, Raspberry Pi and more - Stabilisation for scale pilots and beginners
- Reliable, full-featured rescue system
- Integrated Bank Switching
- Governor for Electric, Nitro and Gasser Helicopters
- BEC tester with load verification
- Spirit Aero support (from 1.5.0 Aero firmware)
- Support for all servo types:
1520/960/760us @ 50 – 560Hz - Support for CCPM 90/120/135/140°
AvailabilityFCC compliance- FCC ID: 2AW4Z-SPIRITGTR (pending)
|
| |

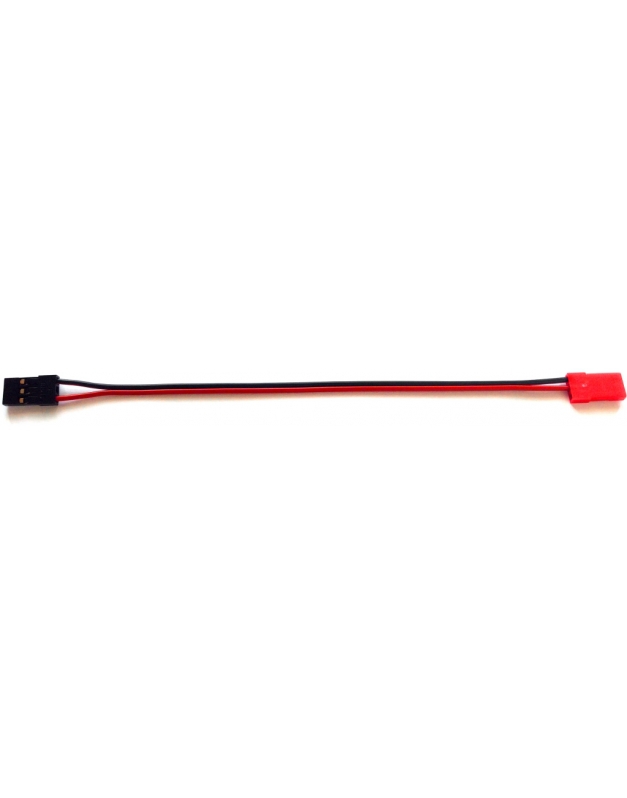

| | | You can configure your flybarless unit directly from Graupner HoTT transmitter remotely without need of a computer! - You do not need to buy anything else, only HoTT compatible receiver is needed.
- Open for wide usage, without any limitations.
- Telemetry and configuration of the unit in real time in your transmitter
- Works with all HoTT transmitters except MZ-4 and MZ-8.
- For Heli and Aero firmwares.
- Cable length: 15cm
|
For further instructions visit our Wiki page. | |
| | | | |

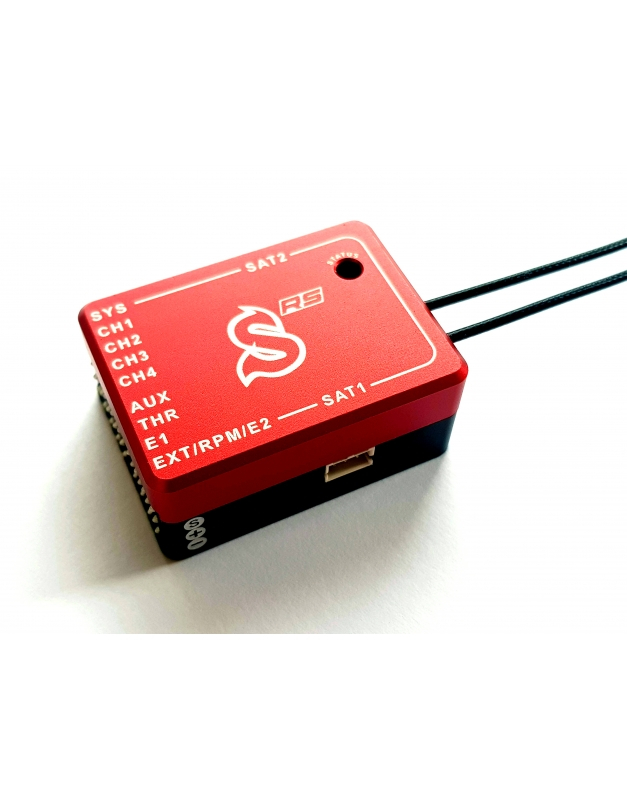

| | | Spirit RS is brand new stabilisation system for R/C aircrafts featuring control unit and receiver in one extraordinary packageǃ It combines the best available technologies from both worlds to offer cutting edge experience. In other words, Spirit RS consists from Spirit 2 hardware and JETI Duplex receiver. Manual available at the Wiki pages. Hardware- Very rigid, CNC milled, anodized and sandblasted enclosure
- Color: Red and Black, matt
- Material: High quality AL6061-T6
- Dimension: 36.8×27.15×15.8mm, weight: 22g
- Power supply: 3.2 – 10V @ 55mA
- Operating temperature: -10°C to 60°C
- Latest generation, Ultra Fast
32bit ARM processor: 210 DMIPS - MEMS sensor with 12-Axis Sensor Fusion
(rotation to 2000°/s !) - Gold plated PCB with Pb-Free soldering
- Laser Engraved labels for perfect visibility.
- 2x independent telemetry ports for JETI DUPLEX sensors
- 3x connector for power supply, 4x for servos
- All-pin protection
- Redundant internal power chain for maximum safety
- Excessive tolerance for brown-outs
- Embedded JETI DUPLEX 2.4 Ghz Telemetry Receiver
- 2x 20cm Full-range antennas
- Max. output power: 15 dBm
- Receiver sensitivity: -106 dBm
Package content- Spirit RS unit
- USB interface
- Bind plug
- 10cm 3M VHB doublesided adhesive tape
Warranty- 2 year warranty for the original purchaser
- 50% discount for damage replacement of the unit
| Features- Super-smooth flight control
- Paddle simulation with inexpressible feeling
- Classic flybar mechanics support
- Extreme vibration immunity for all helicopter types
- Spectrum analysis for model diagnostics
- Flight log with recorded events
- Easy configuration with setup wizard
- Smartphone or tablet support via Bluetooth and WiFi
(Modules are sold separately) - Full integration and telemetry with JETI DUPLEX
- Supported by all JETI DUPLEX radios
- Support for all JETI DUPLEX sensors
- Support for backup DUPLEX receiver
- Support for JETIBOX
- Support for ESC Telemetry – HobbyWing, Kontronik,
Castle, YGE, Scorpion - Revolutionary GeoLink support (GPS/GNSS, vario, logger)
- Available for Windows, OSX, Linux, Android, iOS,
WP, SailfishOS, FreeBSD, Raspberry Pi and more - Stabilisation for scale pilots and beginners
- Reliable, full-featured rescue system
- Integrated Bank Switching
- Governor for Electric, Nitro and Gasser Helicopters
- BEC tester with load verification
- Spirit Aero support (from 1.5.0 Aero firmware)
- Support for all servo types:
1520/960/760us @ 50 – 560Hz - Support for CCPM 90/120/135/140°
|
| |

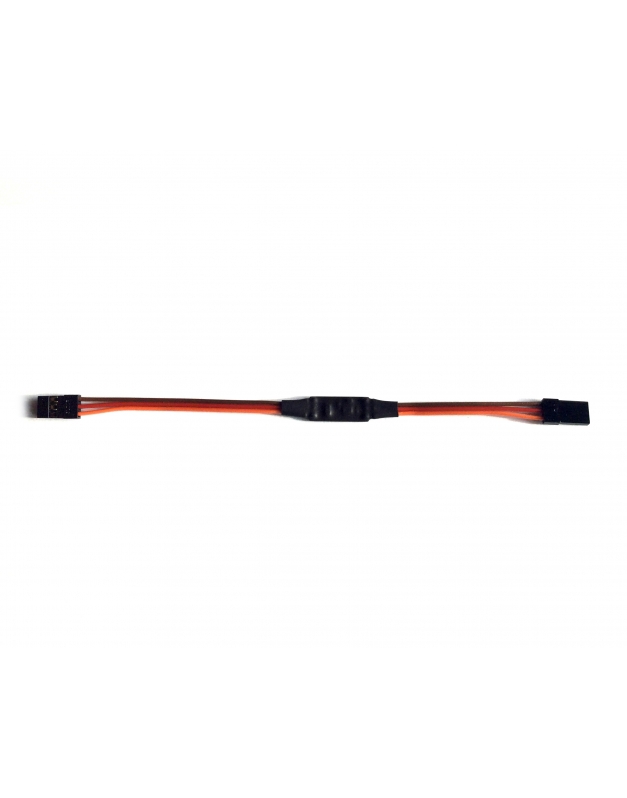

| | | S-Bus Invertor receiver cable for Futaba Fasst Specifications: - Cable length: 165mm
- S-Bus Fasst compatible
Trengs ikke med Spirit Pro | |

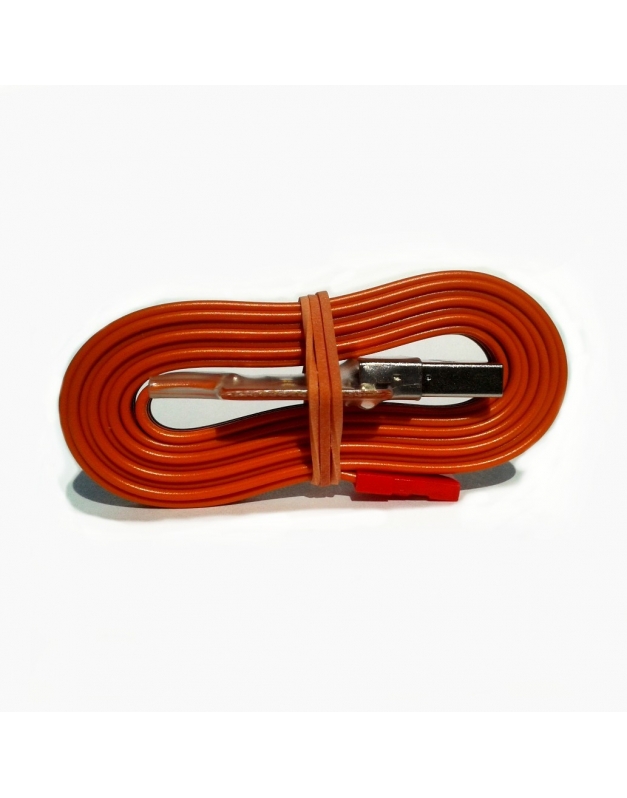

| | | Spare USB interface for configuration your unit with the PC software. - Length: 1 meter
- Great durability
- PC software available on the web
|
| |
