Because of the sophisticated mechanics, the soXos Strike7 achieves maximum rigidity with minimum take-off weight. This allows you to steer the helicopter precisely through the toughest 3D maneuvers and it stays where you want it. Thanks to the light mechanics you can have a lot of fun with the Strike7 even on low RPM flights.

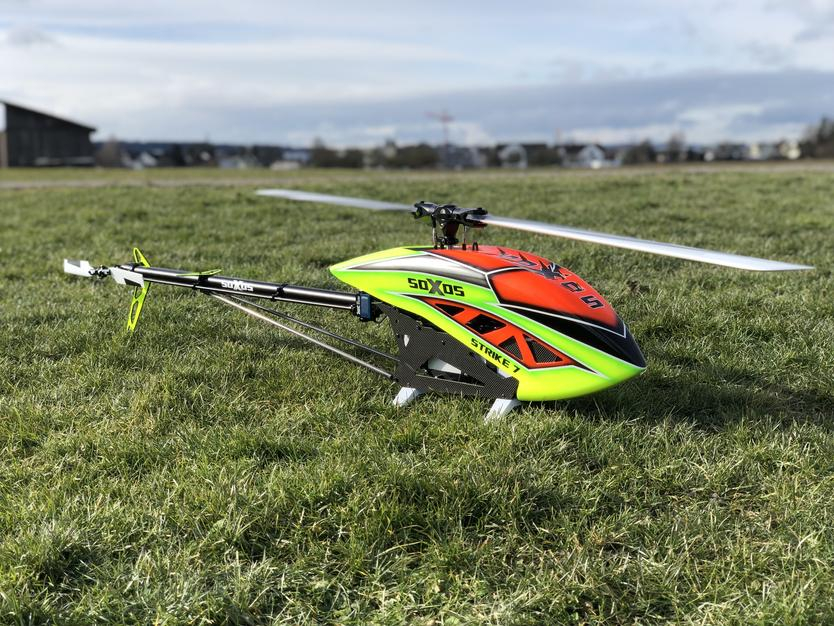

So that you can recognize the soXos Strike7 well in every attitude, a light hood with clearly visible colors is used.

FEATURES SOXOS STRIKE7:

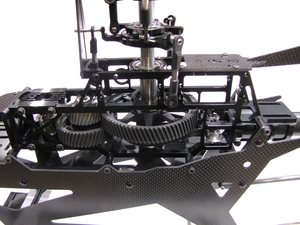

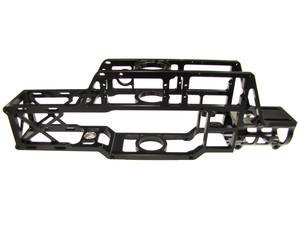

• Made from one piece milled aluminum main frame for minimal weight and maximum rigidity.
• The intelligent design allows easy maintenance and replacement of individual components.

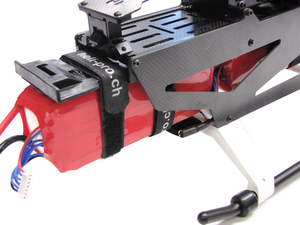

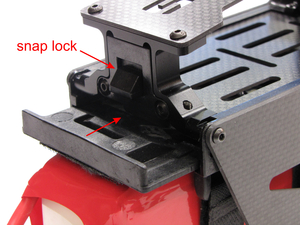

• With the battery quick change system, the batteries can be changed easily and quickly.
• Thanks to the large battery compartment, Lipos up to 12S-6500mAh can be used.

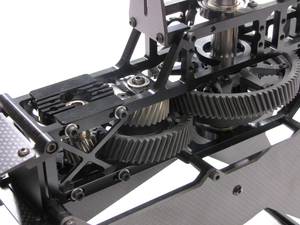

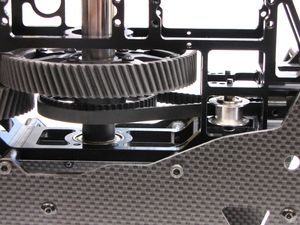

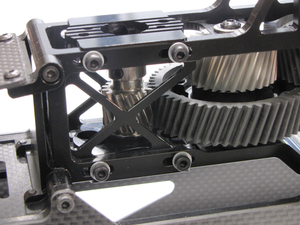

• A robust helical gear made of high-strength plastic ensures optimum power transmission.

• All common engines of the 700 to 850 class can be installed, with 6mm or 8mm shaft diameter.
• The motor pinion is additionally guided at the bottom by a ball bearing. Thus motors with any wavelength can be installed. (At least 20mm, maximum 60mm)
• The gear ratios go from 1: 7.94 with 19-pinion, to 1: 10.06 with 15-pinion.

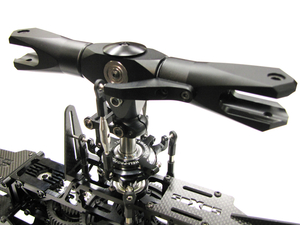

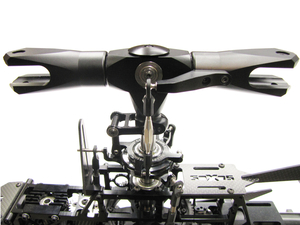

• Strong and short rotor head for maximum precision in extreme maneuvers.
• Specially developed rotor head damping for highest precision.

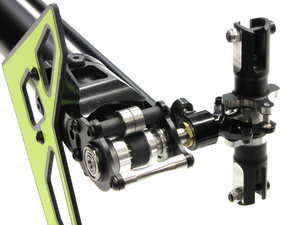

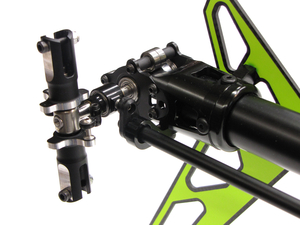

• Damped tail rotor housing, which allows a vibration-poor operation.
• Direct and play-free control of the tail servo to the tail rotor through the torsion bar.
• The hood is held by strong magnets. A simple assembly is guaranteed.
• High quality of the rear timing belt which prevents a static charge.

Kit contents:

• SoXos Strike7 Kit
• Engine sprocket 16z / 6mm for engines of 520-560KV / 12S
• Battery tray
• Canopy red / yellow
• Instructions

Recommended components (not included in KIT):

• Flybarless system
• Regulator: 12S from 130A
• Engine: 700 – 850 class with 450 – 560KV / 6mm or 8mm shaft (maximum motor size: Ø 63mm, height 64mm)
• Swashplate servos 3pcs .: min. 14kg / cm
• Tail servo: min. 6kg / cm
• Rotor blades 685mm – 710mm – Tail
• Tail blades: 105mm – 115mm
• 12S battery 4,000 – 6,500mAh (maximum size drive battery: width 62mm, height 68mm, length 350mm)
• Transmitter / Receiver

Gear ratios   (pinions are available for 6mm or 8mm motor shafts)

15 teeth:  10.06
16 teeth:    9.43 (included in the kit for 6mm shaft)
17 teeth:    8.87
18 teeth:    8.38
19 teeth:    7.94
